Ti Top Streamer can take screenshots of received video streams, a feature often referred to as snapshot in the industry.

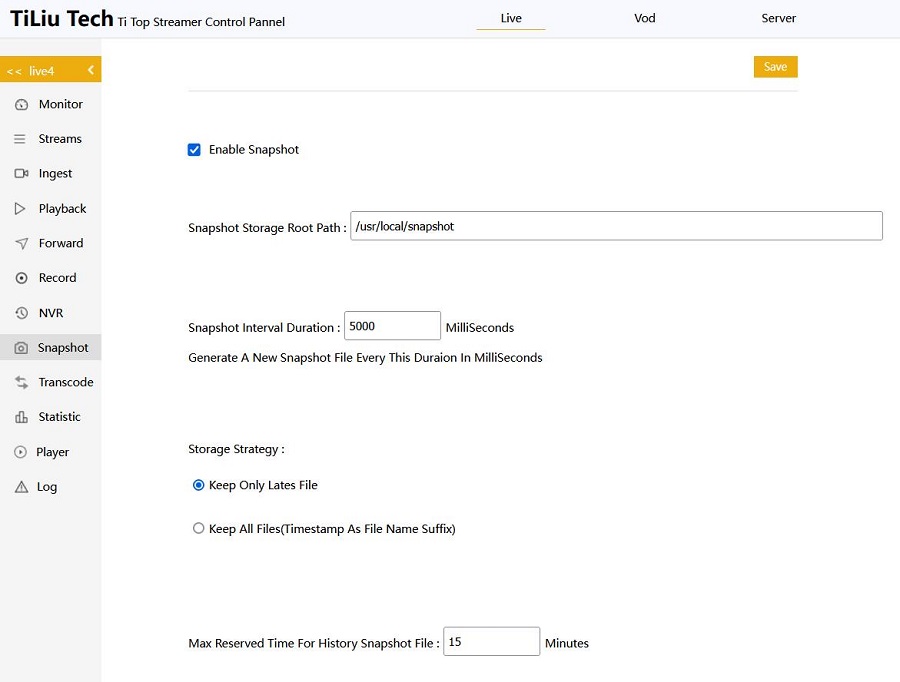

By default, the feature of screenshot is not enabled. Therefore, you need to enable it according to the following configuration:



Here is a brief introduction to the settings:

1) Enable the feature of "snapshot". After selection, snapshot will be generated for newly started streams。

2) Image save path, no need to explain, this is a storage path:

3) The interval for generating screenshots. Firstly, we take screenshots of keyframes, but do we need to take screenshots of each keyframe? Not necessarily, so the setting here is the interval time:

4) Save screenshot file strategy, only keep the latest screenshot file, or save each one and use a timestamp to form the file name.

5) If all screenshots are to be retained, a maximum retention time must be agreed upon, after which the old images will be deleted.

In addition, the screenshot supports both JPG and PNG formats, which can be modified in the configuration file.
